Spring-loaded arms secured by thumb switch grip the tyre for faster setups with no knob twisting.
Schnelle Ergebnisse dank kurzer Einrichtung
Alignment System
Standard Alignment Machines
Fast results with quick setup time
Hunter offers alignment systems with simple operation and low cost of ownership. The standard alignment machines offer quick and efficient alignment reading through powerful HawkEye® imaging technology and WinAlign® Lite software.
Features at-a-glance
-
Easy and safe wheel adaptors
-
Capable WinAlign® Lite software
-
High durability, high uptime
-
Comprehensive vehicle coverage
Specifications at-a-glance
-
2 minuteSetup time
-
24.5 in.Maximum wheel diameter
Hunter Standard Vermessung
/
Speed setup time with Hunter's patented QuickGrip® adaptors and high-definition targets
Fast installation
Spring-loaded clamping arms install easily — off-center placement has no effect on accuracy.
Avoid rim damage
Clamps hook tires and protective ring provides no metal-to-metal contact.
Efficient design
Lightweight, durable and low-profile form make QuickGrip® adaptors a technician-favorite.
Easy to clamp
No metal-to-metal contact
Clamping arms grip the tyre, not the rim. A protective rubber ring sits between the target and the rim.
Lightweight and durable
Weighs only 3.3 kg (7.4 lbs.) and shop-tough to withstands drops with no electronics, cables or necessary calibration.
Quick Change Hooks
Interchangeable arms cover up to 940 mm (37 in.) assemblies.
QuickComp®
Compensate all wheels and capture initial measurements in one motion.
Deep-wheel extension
Service vehicles with deep rims or protruding hubs without any problem.
Standard accessory
Schwierige Entscheidung?
Hier sind einige Tipps
Wir haben einige Punkte aufgeführt, die bei der Auswahl eines Vermessungssystems berücksichtigt werden sollten.
Just how easy is an alignment with WinAlign® Lite?
1
Select a vehicle
2
Measure angles
3
Make adjustments
4
Present results
Select a vehicle
- Recall specifications

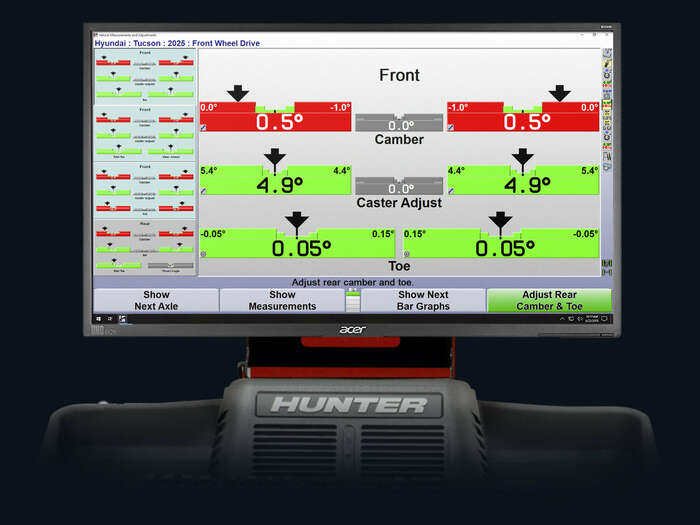

Measure angles
- Install targets
- Capture measurements
- Review "before" results
Make adjustments
- Follow the adjustment instructions
- Print before-and-after results
Present results
- Sell more alignments
- Generate greater profits
Patented and industry-proven alignment features
Save your technicians time and effort with features such as WinToe® adjustments, Ride Height spec coverage, and front axle only measurement option.
See all of the features
WinToe®
Ensure a straight steering wheel every time without repeated adjustments or using a steering wheel holder.
Power tools
Advanced adjustments made easy with built-in Power Tools to guide the way for control arms, bushings, shims, and wheel off adjustments.
Ride Height Spec Coverage
Easily obtain ride height based alignment specifications for BMWs, Mercedes-Benz, Peugeot, and more with built-in calculations plus optional inclinometer tool.
Front axle only measurement option
Quickly perform basic, front end alignments by only mounting the front axle targets. No rear target mounting required.
Soundguide
WinAlign® provides auditory indicators that sound during the adjustment process for when the console screen is not visible.
Wheelbase and Track Width Measurements
Get a full picture of the vehicle's wheelbase and track width measurements.
Vehicle Symmetry Measurements
See accurate wheelbase setbacks and track width offsets to properly diagnose and align vehicles.
Set up the right alignment configuration for your shop
See wheel targets
HS223
High-definition wheel targets with QuickGrip® adaptors
Requires camera sensors
HS221
High-definition wheel targets with self-centering adaptors
Requires camera sensors

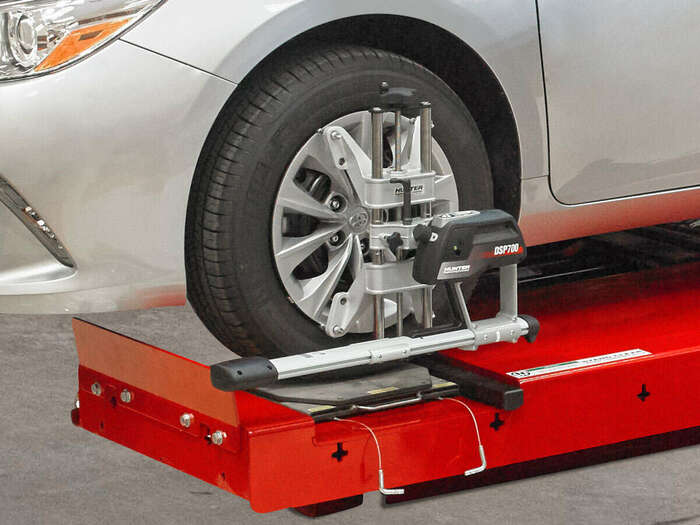

DSP700
Conventional sensors with self-centering adaptors
No camera sensors required
See camera sensors
Cabinet Mount (CM)
Services multiple alignment bays and provides a full range of travel for additional lift height.
MANUAL LIFT (ML)
Provides a full range of vertical travel for additional lift height.
FIXED COLUMN (FC)
Suitable for specific alignment height ranges
Wall Mount (WM)
Enable the optimal use of available space.
Get more work done with less hassle using Fully Integrated Alignment (FIA)
Automatic locking and unlock functions allow your technicians to focus more on the alignments.
Precision Cameras
High-resolution cameras measure wheels automatically once the fourth target is installed.
WinAlign® Console
Patented
Centralized system that guides the technician through the alignment process.
PowerSlide® System
Patented
Slipplates and turnplates automatically lock and unlock at appropriate times.
Inflation Station
Patented
Automatically inflates all four tires simultaneously while recording final pressure.
AlignLights
Illuminate your work area with automatic on/off during lift functions.
Options and Accessories
Enhance your alignment process with these optional add-ons.
See options
Handheld Remote
Save time and effort with remote control around the shop bay.
CodeLink®
Perform steering system resets for supported vehicles.
Remote Indicator
See adjustments live when working under the vehicle rear.
Wheel-off adaptors
Install alignment targets or sensors on hubs to ease adjustments with the wheel out of the way.
Handheld inclinometer
Easily obtain ride height based alignment specifications for BMWs, Mercedes-Benz, Peugeot, and more with built-in calculations.
Your shop deserves the fastest, easiest system
Get 70-second alignment measurements with pinpoint accuracy with HawkEye Elite® — the most powerful wheel alignment machine on the market today.
Verbinden Sie Ihre Geräte mit Ihrem Unternehmen
- Maximieren Sie die Leistung Ihrer Werkstatt
- Vereinfachen Sie Kundengespräche durch Verkaufstools
- Umfassende Informationen zum Unterboden anzeigen
1
2
3
Monitor Trends
Get a high-level overview of your alignment machine usage trends.
Receive daily reports
Setup to receive daily Push Reports to keep your goals and performance in check.
Recall Past Results
View previously serviced vehicles and recall printouts.
Dokumente
-
Brochures
-
Specification Sheets
-
Zubehör
3 Jahre Garantie von Hunter
Die Hunter Engineering Company gewährt eine 3-jährige Garantie auf neue Geräteersatzteile sowie eine Garantie von sechs Monaten auf Herstellungsdefekte.
In den USA entworfen und gefertigt
Vom Rohstahl zum Enderzeugnis. Wenn Sie sich für Hunter entscheiden, investieren Sie in mehr als 1.000 Arbeitskräfte in den USA.
Mehr entdecken
HawkEye Elite® Alignment
Four precision cameras measure each wheel using Hunter’s patented QuickGrip® adaptors.
Designed & Built in the USA
Expert assembly goes into each alignment system, alignment console, tire changer, balancer, brake lathe and other components.
Hunter service
Hunter deploys the largest service force of highly-qualified representatives in the industry.
